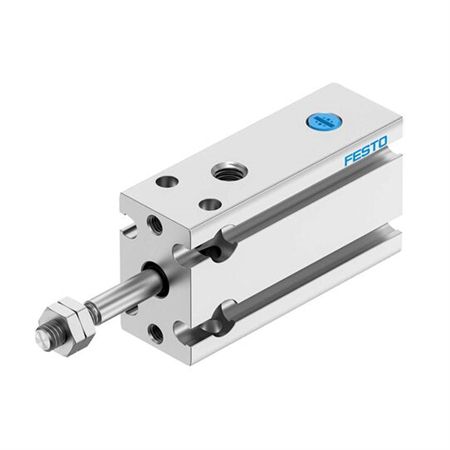

Festo DPDM-10-10-S-PA 4832117 Compact air cylinder

Festo DPDM-10-10-S-PA 4832117 Compact air cylinder

Model: DPDM-10-10-S-PA

Supplier: Festo

Categories: Actuators and Drives

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Festo DPDM-10-10-S-PA 4832117 Compact air cylinder

Compact air cylinder

Stroke10 mm

Piston diameter10 mm

CushioningElastic cushioning rings/pads at both ends

Mounting positionAny

Mode of operationSingle-acting Pushing

Structural designPiston Piston rod Profile barrel

Position sensingFor proximity sensor

Symbol00991729

VariantsPiston rod at one end

Operating pressure0.2 MPa ... 0.8 MPa

Operating pressure2 bar ... 8 bar

Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom classClass 6 according to ISO 14644-1

Ambient temperature-10 °C ... 80 °C

Theoretical force at 6 bar38 N

Theoretical force at 6 bar, advancing38 N

Moving mass at 0 mm stroke6.8 g

Additional moving mass per 10 mm stroke1 g

Basic weight with 0 mm stroke30.5 g

Additional weight per 10 mm stroke7.5 g

Type of mountingOptionally: With through-hole With internal thread

Pneumatic connectionM5

Note on materialsRoHS-compliant

Cover materialWrought aluminum alloy

Seals materialNBR TPE-U(PU)

Housing materialWrought aluminum alloy, anodized

Piston rod materialHigh-alloy stainless steel


Similar model numbers:

DPDM-10-10-P-PA

DPDM-10-10-S-PA

DPDM-10-10-PA
