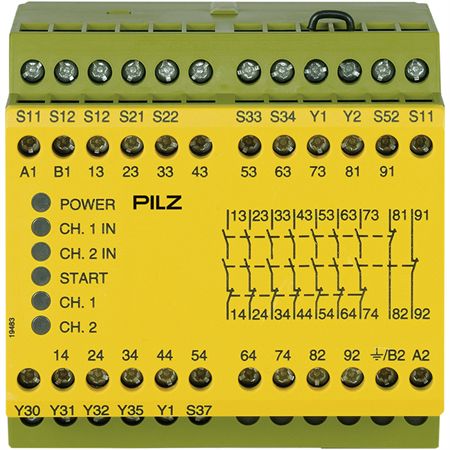

Pilz 774746 PNOZ X10.1 230-240VAC 6n/o 4n/c 6LED Safety relay (standalone)

Electrical data

Supply voltage (V) 230 - 240  V

Type of supply voltage U1 AC

Power consumption AC 10  VA

Inputs

Number of inputs 2

Semiconductor outputs

Number of semicond. outputs 0

Relay outputs

Utilisation cat. AC/DC1 stand. EN 60947-4-1

Voltage AC1 safety cont. 240  V

Max. current AC1 safety cont. 8  A

Voltage DC1 safety cont. 24  V

Max. current DC1 safety cont. 8  A

Utilisation cat. AC15/DC13sta. EN 60947-5-1

Voltage AC15 safety cont. 230  V

Max. current AC15 safety cont. 5  A

Voltage DC13 safety cont. 24  V

Safety contacts: AC at UL 240 VAC G. P.

Safety contacts: pilot duty B300, R300

Relay contact material AgSnO2

Addit. contact details relay + 0.2 µm Au

Environmental data

Climatic suitability to ... EN 60068-2-78

Ambient temperature -10 - 55  °C

Humidity rating 93 % r. h. at 40 °C

Condensation permitted? Not permitted

EMC to standard ... EN 60947-5-1

EN 61000-6-2

EN 61326-3-1

Vibration to standard ... EN 60068-2-6

Clearance & creepage dist. to EN 60947-1

Overvoltage category III / II

Pollution degree clear.&creep. 2

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Mounting position any

Housing material lower section

Housing material front plate ABS UL 94 V0

Housing material upper part

Connection terminal Screw terminal

Terminal style fixed

Flex. cond. c/s AWG info 24 - 10 AWG

Height dimension 87  mm

Width dimension 90  mm

Depth dimension 121  mm

Net weight 730  g

Gross weight 740  g
