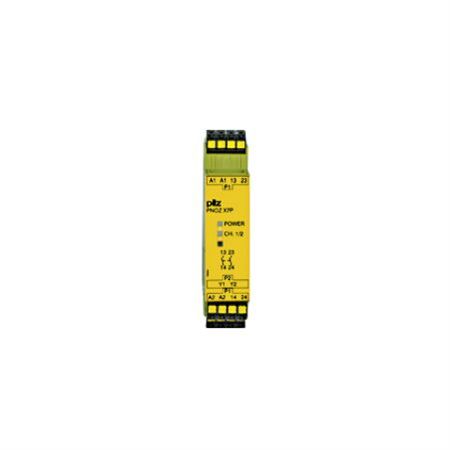

Pilz 787304 PNOZ X2.3P C 24VACDC 3n/o Safety relay (standalone)

Electrical data

Supply voltage (V) 24  V

Type of supply voltage U1 AC/DC

Power consumption AC 4  VA

Power consumption DC 2  W

Inputs

Number of inputs 2

Semiconductor outputs

Number of semicond. outputs 0

Relay outputs

Utilisation cat. AC/DC1 stand. EN 60947-4-1

Voltage AC1 safety cont. 240  V

Max. current AC1 safety cont. 6  A

Voltage DC1 safety cont. 24  V

Max. current DC1 safety cont. 6  A

Utilisation cat. AC15/DC13sta. EN 60947-5-1

Voltage AC15 safety cont. 230  V

Max. current AC15 safety cont. 5  A

Voltage DC13 safety cont. 24  V

Safety contacts: AC at UL 240 VAC G. P.

Safety contacts: pilot duty B300, R300

Relay contact material AgSnO2

Addit. contact details relay + 0.2 µm Au

Environmental data

Climatic suitability to ... EN 60068-2-78

Ambient temperature -10 - 55  °C

Humidity rating 93 % r. h. at 40 °C

Condensation permitted? Not permitted

EMC to standard ... EN 60947-5-1

EN 61000-6-2

EN 61326-3-1

Vibration to standard ... EN 60068-2-6

Clearance & creepage dist. to EN 60947-1

Overvoltage category III / II

Pollution degree clear.&creep. 2

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Mounting position any

Housing material lower section

Housing material front plate ABS UL 94 V0

Housing material upper part

Connection terminal Spring-loaded terminal

Terminal style plug-in

Height dimension 101  mm

Width dimension 22.5  mm

Depth dimension 121  mm

Net weight 205  g

Gross weight 215  g

Similar model numbers:

775650

775695

775600

775630

777056

777059

777080

777301

777100

777300

777302

777307

777304

777305

777086

777310

777313

777314

777306

777308

777760

777750

777768

777607

777609

777606

787059

787100

787086

787302

787300

787301

787080

787314

787303

787305

787304

787306

787307

787313

787609

787760

787750

774760

774049

774323

774721

774700

774703

774701

774736

774725

774726

777053

777083

777764

787053

787056

787308

787606

787764

775830

775620
