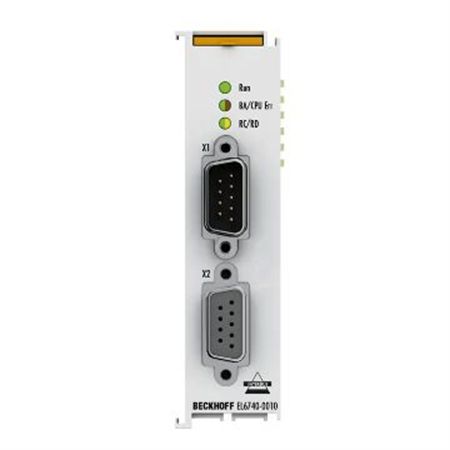

Beckhoff EL6740-0010 EtherCAT Terminal, 1-channel communication interface, Interbus, slave

Beckhoff EL6740-0010 EtherCAT Terminal, 1-channel communication interface, Interbus, slave

Model: EL6740-0010

Supplier: Beckhoff

Categories: I/Os and Fieldbus Systems

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Beckhoff EL6740-0010 EtherCAT Terminal, 1-channel communication interface, Interbus, slave

EtherCAT Terminal20

Technical data EL6740-0010

Technology Interbus slave terminal

Fieldbus Interbus, max. 400 m between 2 stations at 500 kbit/s

Number of fieldbus channels 1

Data transfer rates 500 kbit, 2 Mbit (default)

Interfaces 2 x D-sub plug, 9-pin, plug and socket with screening and vibration lock

Max. number of bytes fieldbus 32 word input and 32 word output

Hardware diagnostics status LEDs

Distributed clocks

Type of connection only remote bus

Current consumption power contacts

Current consumption E-bus typ. 450 mA

Special features status LEDs

Weight approx. 80 g

Operating/storage temperature 0…+55 °C/-25…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/see documentation

Approvals/markings CE, UL, ATEX, IECEx

Ex marking ATEX:

II 3 G Ex nA IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc



Housing data

To top

Housing data EL-24

Design form compact terminal housing with signal LEDs

Material polycarbonate

Dimensions (W x H x D) 24 mm x 100 mm x 52 mm

Installation on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of double slot and key connection

Marking

Wiring specific push-in connection
