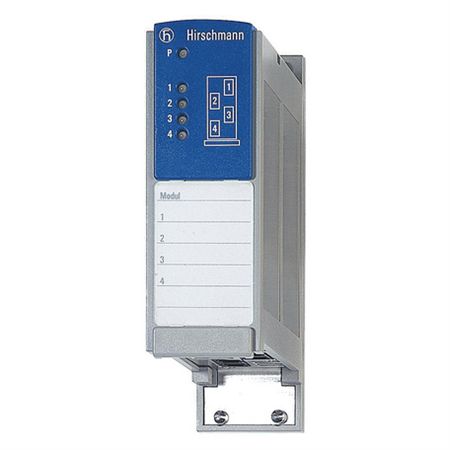

Hirschmann MM3-1FXL2/3TX1 Media module for MICE Switches (MS...), 100BASE-TX and 100BASE-FX single mode F/O
Product description
Type: MM3-1FXL2/3TX1
Part Number: 943763101
Port type and quantity: 1 x 100BASE-FX, SM cables, 1550 nm, SC sockets, 3 x 10/100BASE-TX, TP cables, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
Product Life Cycle
Availability: Last Order Date: December 31st, 2023
Last Order Date: 2023-12-31
Last Delivery Date: 2024-06-30
Network size - length of cable
Twisted pair (TP): 0-100
Single mode fiber (LH) 9/125 µm (long haul transceiver): 24 -86.6 km, 7 - 29 dB link budget at 1550 nm, A = 0.3 dB/km, 3 dB reserve, D = 19 ps/(nm x km)
Power requirements
Operating Voltage: power supply via the backplane of the MICE switch
Power consumption: 3.4 W
Power output in BTU (IT)/h: 11.6 Btu (IT)/h
Software
Diagnostics: LEDs (power, link status, data, 100 Mbit/s, auto-negotiation, full duplex, ring port, LED test)
Ambient conditions
MTBF (MIL-HDBK 217F: Gb 25 ºC): 76.6 Years
Operating temperature: 0-+60 °C
Storage/transport temperature: -40-+70 °C
Relative humidity (non-condensing): 10-95 %
Mechanical construction
Dimensions (WxHxD): 38 mm x 134 mm x 118 mm
Weight: 180 g
Mounting: Backplane
Protection class: IP 20
Mechanical stability
IEC 60068-2-6 vibration: 1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13.2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field: 10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst): 2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
EN 61000-4-6 Conducted Immunity: 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC emitted immunity
EN 55032: EN 55032 Class A
EN 55022: EN 55022 Class A
FCC CFR47 Part 15: FCC 47CFR Part 15, Class A
Approvals
Basis Standard: CE
Safety of industrial control equipment: cUL508
Shipbuilding: DNV
Scope of delivery and accessories
Accessories to Order Separately: ML-MS2/MM labels
Scope of delivery: module, general safety instructions
Further Instructions
Product Documentation: https://www.doc.hirschmann.com
Certificates: https://www.doc.hirschmann.com/certificates.html
