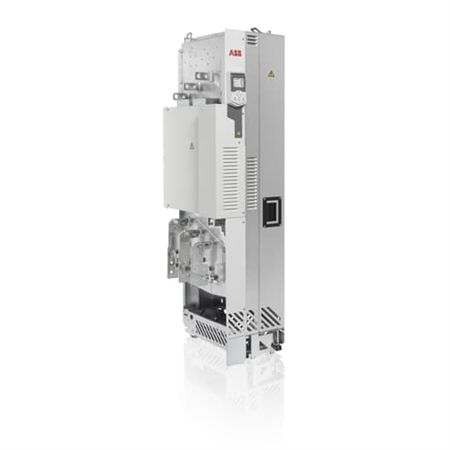

ABB ACS580-04-820A-4 3AUA0000170524 LV AC general purpose drive module, IEC: Pn 450 kW, 820 A, 400 V, UL: Pld 700 Hp, 807 A, 480 V

Ordering

Country of Origin:Finland (FI)

Customs Tariff Number:85044086

Invoice Description:ACS580-04-820A-4 PN: 450 kW, IN: 820 A

Made To Order:Yes

Minimum Order Quantity:1 piece

Order Multiple:1 piece

Quote Only:No

Selling Unit of Measure:piece

Container Information

Gross Volume:307.719 dm³

Dimensions

Product Net Weight:199 kg

438.720 lb

Product Net Depth / Length:529 mm

20.827 in

Product Net Height:1662 mm

65.433 in

Product Net Width:350 mm

13.780 in

Package Level 1 Depth / Length:2060.00 mm

81.102 in

Package Level 1 Height:500.00 mm

19.685 in

Package Level 1 Width:670.00 mm

26.378 in

Package Level 1 Units:1 carton

Technical

Number of Phases:3

Degree of Protection:IP00

Enclosure Type NEMA:Open Type

Altitude:1000 m

Operating Humidity (RHamb):95

Sound dB (A):72 dB(A)

Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g

Frequency (f):47.5 ... 63 Hz

Frame Size:R11

Input Voltage (Uin):380 ... 480 V

Mounting Type:Module for cabinet building

Communication Protocol:CAN

DeviceNet

EtherNet/IP

MODBUS

Other Bus Systems

PROFIBUS

PROFINET IO

TCP/IP

Number of Hardware Interfaces:Industrial Ethernet 0

Other 2

Parallel 2

PROFINET 0

RS-232 0

RS-422 0

RS-485 1

Serial TTY 0

USB 1

Includes:With control unit

Without optical interface

With PC connection

Analog Inputs:2

Analog Outputs:2

Number of Digital In/Outputs:6 / 3

Output Current, Heavy-Duty Use (IHD):625 A

Output Current, Light-Overload Use (ILD):810 A

Output Current, Normal Use (In):820 A

Output Power, Heavy-Duty Use (PHD):355 kW

Output Power, Light-Overload Use (PLD):450 kW

Output Power, Normal Use (Pn):450 kW

Apparent Power Output:568 kV·A

Efficiency Level:IE2

Standby Loss:466 W

Complete Drive Module Efficiency (61800-9-2):

Operating Point Frequency / Current Absolute Loss Efficiency Relative Loss

0/25 % 2551 W 93.4 % 0.4 %

0/50 % 3666 W 95.1 % 0.5 %

0/100 % 6680 W 95.5 % 1.0 %

50/25 % 2748 W 96.5 % 0.4 %

50/50 % 4097 W 97.3 % 0.6 %

50/100 % 7768 W 97.4 % 1.1 %

90/50 % 4753 W 98.3 % 0.7 %

90/100 % 9652 W 98.2 % 1.4 %

Temperature Rating:Maximum 40 °C

Minimum -15 °C

Additional Information

Product Main Type:ACS580-04

Product Name:Frequency converter

Classifications

ETIM 7:EC001857 - Frequency converter =< 1 kV

UNSPSC:39122001

Environmental

SCIP:e9fd22a6-81c4-4079-87c1-83e8cf566d7a Finland (FI)

WEEE Category:4. Large Equipment (Any External Dimension More Than 50 cm)
