ABB AF52-30-00-14LU 1SBL367087R1400 250-500V50/60HZ-DC Contactor

ABB AF52-30-00-14LU 1SBL367087R1400 250-500V50/60HZ-DC Contactor

Model: AF52-30-00-14LU

Supplier: ABB

Categories: Low Voltage Products

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

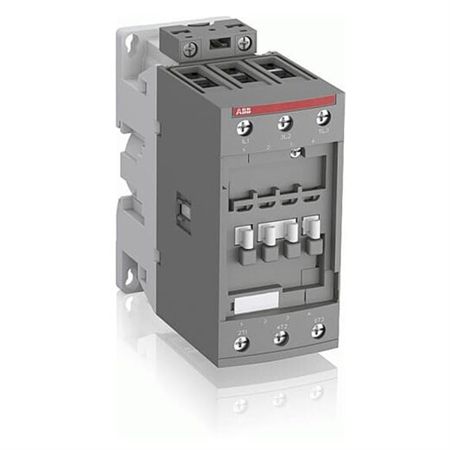

ABB AF52-30-00-14LU 1SBL367087R1400 250-500V50/60HZ-DC Contactor

Contactor4

Ordering

Minimum Order Quantity:1 piece

Customs Tariff Number:85364900

Popular Downloads

Data Sheet, Technical Information:1SBC100214C0202

Instructions and Manuals:1SBC101036M6801

CAD Dimensional Drawing:2CDC001079B0201

Dimensions

Product Net Width:55 mm

Product Net Depth / Length:111 mm

Product Net Height:125.5 mm

Product Net Weight:0.95 kg

Technical

Number of Main Contacts NO:3

Number of Main Contacts NC:0

Number of Auxiliary Contacts NO:0

Number of Auxiliary Contacts NC:0

Standards:IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

Rated Operational Voltage:Main Circuit 690 V

Rated Frequency (f):Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith):acc. to IEC 60947-4-1, Open Contactors q = 40 °C 105 A

Rated Operational Current AC-1 (Ie):(690 V) 40 °C 100 A

(690 V) 60 °C 80 A

(690 V) 70 °C 70 A

Rated Operational Current AC-3 (Ie):(415 V) 60 °C 53 A

(440 V) 60 °C 53 A

(500 V) 60 °C 45 A

(690 V) 60 °C 35 A

(380 / 400 V) 60 °C 53 A

(220 / 230 / 240 V) 60 °C 53 A

Rated Operational Current AC-3e (Ie):(415 V) 60 °C 53 A

(440 V) 60 °C 53 A

(500 V) 60 °C 45 A

(690 V) 60 °C 35 A

(380 / 400 V) 60 °C 53 A

(220 / 230 / 240 V) 60 °C 53 A

Rated Operational Power AC-3 (Pe):(400 V) 22 kW

(415 V) 30 kW

(440 V) 30 kW

(500 V) 30 kW

(690 V) 30 kW

(380 / 400 V) 22 kW

(220 / 230 / 240 V) 15 kW

Rated Operational Power AC-3e (Pe):(415 V) 30 kW

(440 V) 30 kW

(500 V) 30 kW

(690 V) 30 kW

(380 / 400 V) 22 kW

(220 / 230 / 240 V) 15 kW

Rated Short-time Withstand Current Low Voltage (Icw):at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A

at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A

for 1 s -empty- A

Maximum Breaking Capacity:cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A

Maximum Electrical Switching Frequency:(AC-1) 600 cycles per hour

(AC-2 / AC-4) 150 cycles per hour

(AC-3) 1200 cycles per hour

Rated Insulation Voltage (Ui):acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp):6 kV

Maximum Mechanical Switching Frequency:3600 cycles per hour

Rated Control Circuit Voltage (Uc):50 Hz 250 ... 500 V

60 Hz 250 ... 500 V

DC Operation 250 ... 500 V

Operate Time:Between Coil De-energization and NC Contact Closing 19 ... 105 ms

Between Coil De-energization and NO Contact Opening 17 ... 100 ms

Between Coil Energization and NC Contact Opening 38 ... 95 ms

Between Coil Energization and NO Contact Closing 42 ... 100 ms

Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied):2 x M4 or 2 x M6 screws placed diagonally

Connecting Capacity Main Circuit:Flexible with Ferrule 1/2x 4 ... 35 mm²

Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²

Rigid 1/2x 6 ... 3 5 mm²

Connecting Capacity Control Circuit:Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Rigid 1/2x 1 ... 2.5 mm²

Wire Stripping Length:Main Circuit 16 mm

Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Terminal Type:Screw Terminals

Technical UL/CSA

General Use Rating UL/CSA:(600 V AC) 80 A

Horsepower Rating UL/CSA:(120 V AC) Single Phase 3 hp

(200 ... 208 V AC) Three Phase 15 hp

(220 ... 240 V AC) Three Phase 20 hp

(240 V AC) Single Phase 10 hp

(440 ... 480 V AC) Three Phase 40 hp

(550 ... 600 V AC) Three Phase 50 hp

Tightening Torque UL/CSA:Control Circuit 11 in·lb

Main Circuit 35 in·lb

Environmental

Ambient Air Temperature:Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °C

Close to Contactor without Thermal O/L Relay -40 ... 70 °C

Close to Contactor for Storage -60 ... +80 °C

Climatic Withstand:Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible:Without Derating 3000 m

Resistance to Vibrations acc. to IEC 60068-2-6:5 ... 300 Hz 3 g closed position / 3 g open position

Resistance to Shock acc. to IEC 60068-2-27:Closed, Shock Direction: A 25 g

Closed, Shock Direction: B1 25 g

Closed, Shock Direction: B2 15 g

Closed, Shock Direction: C1 25 g

Closed, Shock Direction: C2 25 g

Open, Shock Direction: B1 5 g

RoHS Status:Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

CB Certificate:CB_SE-108889A1

Declaration of Conformity - CE:1SBD250062U1000

Declaration of Conformity - UKCA:1SBD250063U1000

Environmental Information:1SBC100222M0201

Instructions and Manuals:1SBC101036M6801

REACH Declaration:2CMT2021-006202

RoHS Information:2CMT2021-006277

UL Certificate:UL_20130301_E312527_14_1

Container Information

Package Level 1 Units:box 1 piece

Package Level 1 Width:150 mm

Package Level 1 Depth / Length:150 mm

Package Level 1 Height:97 mm

Package Level 1 Gross Weight:1.05 kg

Package Level 1 EAN:3471523020726

Package Level 2 Units:box 10 piece

Package Level 2 Width:250 mm

Package Level 2 Depth / Length:300 mm

Package Level 2 Height:300 mm

Package Level 2 Gross Weight:10.5 kg

Package Level 3 Units:240 piece

Classifications

Object Classification Code:Q

ETIM 6:EC000066 - Power contactor, AC switching

ETIM 7:EC000066 - Power contactor, AC switching

ETIM 8:EC000066 - Power contactor, AC switching

eClass:V11.0 : 27371003

UNSPSC:39121529


Similar model numbers:

AF52-40-00-41

AF52-30-11-41

AF52-30-22-41

AF52-30-00-41

AF52-40-00-11

AF52-40-00-12

AF52-40-00-13

AF52-40-00-14

AF52-30-11-14

AF52-30-22-14

AF52-30-22-11

AF52-30-11-11

AF52-30-22-13

AF52-30-00-14

AF52-30-00-12

AF52-30-11-12

AF52-30-00-13

AF52-30-11-13

AF52-30-22-12

AF52-30-00-11

AF52-30-00-13LU

AF52-30-00-14LU

AF52-40-00-13LU

AF52-40-00-14LU

AF52R-30-22-14

AF52R-30-22-11

AF52R-30-22-12

AF52R-30-22-13
