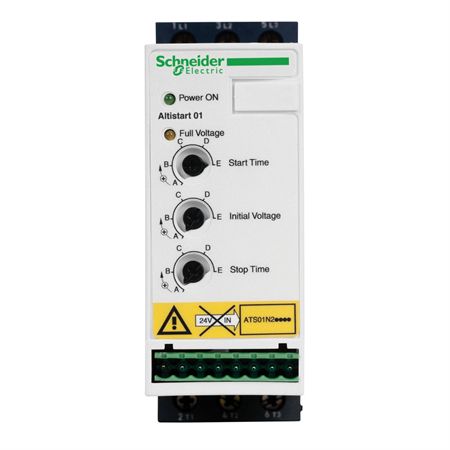

Schneider Electric ATS01N206RT soft starter for asynchronous motor - ATS01 - 6 A - 460..480 V

Main

Range of product Altistart 01

Product or component type Soft starter

Product destination Asynchronous motors

Product specific application Simple machine

Device short name ATS01

Network number of phases 3 phases

[Us] rated supply voltage 460...480 V - 10...10 %

Motor power hp 2 hp, 3 phases at 460...480 V

3 hp, 3 phases at 460...480 V

IcL starter rating 6 A

Utilisation category AC-53B conforming to EN/IEC 60947-4-2

Current consumption 30 A at nominal load

type of start Start with voltage ramp

Power dissipation in W 4 W at full load and at end of starting

64 W in transient state

Complementary

Assembly style With heat sink

Function available Integrated bypass

Supply voltage limits 414…528 V

Supply frequency 50...60 Hz - 5...5 %

Network frequency 47.5...63 Hz

Output voltage <= power supply voltage

[Uc] control circuit voltage Built into the starter

Starting time 1 s / 100

5 s / 20

10 s / 10

Adjustable from 1 to 10 s

Deceleration time symb Adjustable from 1 to 10 s

Starting torque 30...80 % of starting torque of motor connected directly on the line supply

Discrete input type Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm

Discrete input voltage 24...40 V

Discrete input logic Positive LI1, LI2, BOOST at State 0: < 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA

Discrete output current 2 A DC-13

3 A AC-15

Discrete output type Open collector logic LO1 end of starting signal

Relay outputs R1A, R1C NO

Discrete output voltage 24 V (voltage limits: 6...30 V) open collector logic

Minimum switching current 10 mA at 6 V DC for relay outputs

Maximum switching current Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load

Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load

Display type 1 LED (green) for starter powered up

1 LED (yellow) for nominal voltage reached

Tightening torque 1.9…2.5 N.m

0.5 N.m

Electrical connection 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit

Screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit

4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit

Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit

Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit

4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit

Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit

4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit

4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit

Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

Marking CE

operating position Vertical +/- 10 degree

Height 124 mm

Width 45 mm

Depth 131 mm

Net weight 0.42 kg

Compatibility code ATS01N2

Environment

Electromagnetic compatibility Conducted and radiated emissions level B conforming to CISPR 11

Conducted and radiated emissions level B conforming to IEC 60947-4-2

Damped oscillating waves level 3 conforming to IEC 61000-4-12

Electrostatic discharge level 3 conforming to IEC 61000-4-2

EMC immunity conforming to EN 50082-1

EMC immunity conforming to EN 50082-2

Harmonics conforming to IEC 1000-3-2

Harmonics conforming to IEC 1000-3-4

Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6

Immunity to electrical transients level 4 conforming to IEC 61000-4-4

Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3

Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11

Voltage/current impulse level 3 conforming to IEC 61000-4-5

Standards EN/IEC 60947-4-2

Product certifications CCC

UL

GOST

C-Tick

CSA

B44.1-96/ASME A17.5 for starter wired to the motor delta terminal

IP degree of protection IP20

Pollution degree 2 conforming to EN/IEC 60947-4-2

Vibration resistance 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6

1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27

Relative humidity 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

Ambient air temperature for operation -10…40 °C (without derating)

40…50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage -25…70 °C conforming to EN/IEC 60947-4-2

Operating altitude <= 1000 m without derating

> 1000 m with current derating of 2.2 % per additional 100 m

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 5.5 cm

Package 1 Width 15.2 cm

Package 1 Length 17.5 cm

Package 1 Weight 539.0 g

Unit Type of Package 2 S03

Number of Units in Package 2 14

Package 2 Height 30.0 cm

Package 2 Width 30.0 cm

Package 2 Length 40.0 cm

Package 2 Weight 8.022 kg
