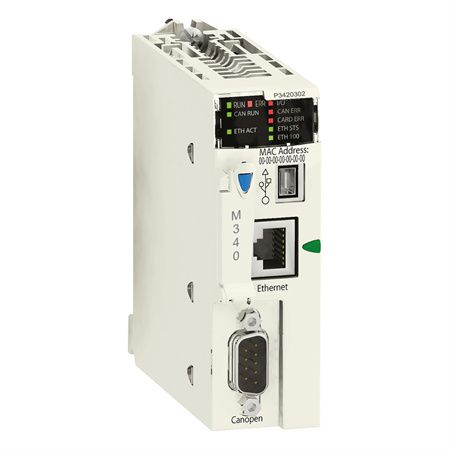

Schneider Electric BMXP3420102 Processor, Modicon M340, max 1024 discrete + 256 analog I/O, Modbus, CANopen

Schneider Electric BMXP3420102 Processor, Modicon M340, max 1024 discrete + 256 analog I/O, Modbus, CANopen

Model: BMXP3420102

Supplier: Schneider Electric

Categories: PLC, PAC and Dedicated Controllers

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Schneider Electric BMXP3420102 Processor, Modicon M340, max 1024 discrete + 256 analog I/O, Modbus, CANopen


Main

Range of product Modicon M340 automation platform

Product or component type Processor module

Number of racks 4

Number of slots 11

Discrete I/O processor capacity 1024 I/O multi-rack configuration

704 I/O single-rack configuration

Analogue I/O processor capacity 256 I/O multi-rack configuration

66 I/O single-rack configuration

number of application specific channel 36

Monitoring Diagnostic counters Modbus

Event counters Modbus

Complementary

Control channels Programmable loops

Motion control Independent axis CANopen

Integrated connection type Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex

Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex

Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex

Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex

USB port at 12 Mbit/s

CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s

Communication module processor capacity 2 Ethernet communication module

4 AS-Interface module

embedded communication service Network management (NMT) CANopen

Process Data Object (PDO) CANopen

Service Data Object (SDO) CANopen

Special functions (SYNC, EMCY, TIME) CANopen

Transmission rate 1 Mbit/s 0…20 m 0…0.6 m

125 kbit/s 0…500 m 0…10 m

20 kbit/s 0…2500 m 0…300 m

250 kbit/s 0…250 m 0…10 m

50 kbit/s 0…1000 m 0…120 m

500 kbit/s 0…100 m 0…10 m

800 kbit/s 0…40 m 0…6 m

Bus type CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA

CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA

CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA

Number of slave 63 CANopen

Number of devices per segment 0…32 (character mode)

0…32 (Modbus)

0…16 for <205 m (CANopen)

0…32 for <185 m (CANopen)

0…64 for <160 m (CANopen)

Number of devices 2 point-to-point character mode

2 point-to-point Modbus

Bus length 0…10 m serial link non isolated character mode segment

0…10 m serial link non isolated Modbus segment

0…1000 m serial link isolated character mode segment

0…1000 m serial link isolated Modbus segment

0…15 m character mode point-to-point

0…15 m Modbus point-to-point

Maximum tap links length <15 m serial link non isolated character mode segment

<15 m serial link non isolated Modbus segment

<40 m serial link isolated character mode segment

<40 m serial link isolated Modbus segment

Number of addresses 0…248 for character mode

0…248 for Modbus

Requests 1 K data bytes per request character mode

252 data bytes per RTU request Modbus

504 data bytes per ASCII request Modbus

Control parameter One CRC on each frame (RTU) Modbus

One LRC on each frame (ASCII) character mode

One LRC on each frame (ASCII) Modbus

Memory description Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data

Internal RAM 4096 kB

Internal RAM 256 kB data

Internal RAM 3584 kB program constants and symbols

Maximum size of object areas 256 kB unlocated internal data

32634 %Mi located internal bits

Default size of object areas 1024 %MWi internal words located internal data

256 %KWi constant words located internal data

512 %Mi located internal bits

Application structure No auxiliary task

1 cyclic/periodic master task

1 periodic fast task

64 event tasks

Execution time per instruction 0.12 µs Boolean

0.17 µs double-length words

0.25 µs single-length words

1.16 µs floating points

Number of instructions per ms 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic

8.1 Kinst/ms 100 % Boolean

System overhead 0.13 ms for fast task

0.7 ms for master task

Current consumption 90 mA at 24 V DC

Supply Internal power supply via rack

Marking CE

Status LED 1 LED (green) integrated machine/installation bus operational (CAN RUN)

1 LED (green) processor running (RUN)

1 LED (red) I/O module fault (I/O)

1 LED (red) integrated machine/installation bus fault (CAN ERR)

1 LED (red) memory card fault (CARD ERR)

1 LED (red) processor or system fault (ERR)

1 LED (yellow) activity on Modbus (SER COM)

Net weight 0.21 kg

Environment

Ambient air temperature for operation 0…60 °C

Relative humidity 10…95 % without condensation

IP degree of protection IP20

Protective treatment TC

Directives 2014/35/EU - low voltage directive

2014/30/EU - electromagnetic compatibility

Product certifications CE

UL

CSA

RCM

EAC

Merchant Navy

Standards EN 61131-2

EN/IEC 61010-2-201

UL 61010-2-201

CSA C22.2 No 61010-2-201

IACS E10

EN/IEC 61000-6-5, interface type 1 and type 2

EN/IEC 61850-3, location G

Environmental characteristic Hazardous location class I division 2

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 5.400 cm

Package 1 Width 11.500 cm

Package 1 Length 12.400 cm

Package 1 Weight 248.000 g

Unit Type of Package 2 S02

Number of Units in Package 2 15

Package 2 Height 15.000 cm

Package 2 Width 30.000 cm

Package 2 Length 40.000 cm

Package 2 Weight 4.058 kg
