Schneider Electric BMEAHI0812H Analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments

Schneider Electric BMEAHI0812H Analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments

Model: BMEAHI0812H

Supplier: Schneider Electric

Categories: PLC, PAC and Dedicated Controllers

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Schneider Electric BMEAHI0812H Analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments

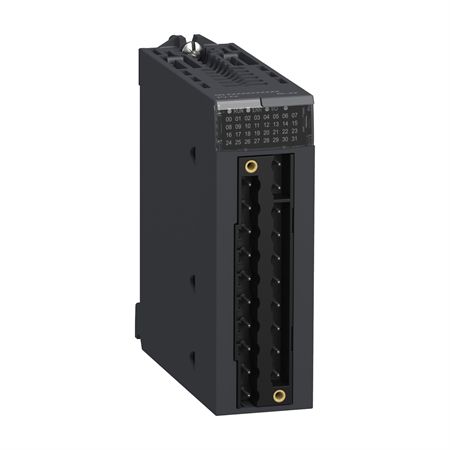

Discrete input module.JPG

Main

Range of product Modicon X80

Product or component type Analog input module

Complementary

Application specific I/O HART

Product compatibility BMEP58... processor

BMXFTB20... terminal block

ABE7CPA31

ABE7CPA02

ABE7CPA03

Head module BMECRA31210

BMEXBP... backplane

Electrical connection 20 ways terminal block

Telefast

Isolation between channels Isolated

Analogue input number 8

Analogue input type Current 4...20 mA

Analogue input resolution 15 bits + sign

Input impedance 250 Ohm internally protective resistor (3.6 to 50 Ohm)

Measurement error 0.15 % of full scale 25 °C

0.55 % of full scale - 25...70 °C

Temperature drift 50 ppm/°C

Isolation voltage 1000 V DC for 60 s between channels

1400 V DC for 60 s between channels and ground

1400 V DC for 60 s between channels and bus

Checks Broken wire detection

Topology Point-to-point

Function available I/O mapping

Net weight 0.233 kg

Environment

ambient air temperature for operation -25…70 °C

Ambient air temperature for storage -40…85 °C

Operating altitude 0...2000 m

2000...5000 m with derating factor

Directives 2014/35/EU - low voltage directive

2014/30/EU - electromagnetic compatibility

2014/34/EU - ATEX directive

Product certifications CE

UL

CSA

RCM

EAC

Merchant Navy

ATEX zone 2/22

IECEx zone 2/22

Standards EN/IEC 61131-2

EN/IEC 61010-2-201

UL 61010-2-201

CSA C22.2 No 61010-2-201

IACS E10

EN/IEC 61000-6-5, interface type 1 and type 2

EN/IEC 61850-3, location G

EN/IEC 60079-0

Environmental characteristic Gas resistant class Gx conforming to ISA S71.04

Gas resistant class 3C4 conforming to IEC 60721-3-3

Dust resistant class 3S4 conforming to IEC 60721-3-3

Sand resistant class 3S4 conforming to IEC 60721-3-3

Salt resistant level 2 conforming to IEC 68252

Mold growth resistant class 3B2 conforming to IEC 60721-3-3

Fungal spore resistant class 3B2 conforming to IEC 60721-3-3

Hazardous location class I division 2

Protective treatment Conformal coating

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 5.5 cm

Package 1 Width 11.0 cm

Package 1 Length 12.0 cm

Package 1 Weight 242.0 g

Unit Type of Package 2 S02

Number of Units in Package 2 15

Package 2 Height 15.0 cm

Package 2 Width 30.0 cm

Package 2 Length 40.0 cm

Package 2 Weight 3.87 kg
