Schneider Electric BMXSDI1602 discrete input module - 16 inputs - 24 V DC positive - Safety

Schneider Electric BMXSDI1602 discrete input module - 16 inputs - 24 V DC positive - Safety

Model: BMXSDI1602

Supplier: Schneider Electric

Categories: PLC, PAC and Dedicated Controllers

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Schneider Electric BMXSDI1602 discrete input module - 16 inputs - 24 V DC positive - Safety

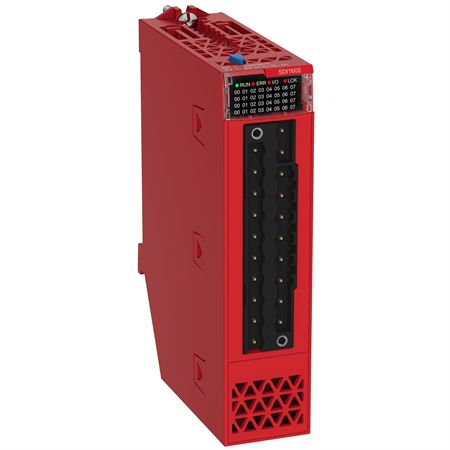

Discrete input module6.JPG


Main

Range of productModicon X80

Product or component typeDiscrete input module

Discrete input number16

Discrete input typeNot isolated

Input typeCurrent sink (logic positive)

Discrete input voltage24 V DC, discrete input logic: positive

Discrete input current3.2 mA

Complementary

Input compatibilityWith 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2

Sensor power supply19...30 V

Current state 1 guaranteed>= 2 mA

Current state 0 guaranteed<= 1.5 mA

Input impedance7500 Ohm

Insulation resistance> 10 MOhm 500 V DC

Power dissipation in W3.57 W

DC typical response time6 ms

DC maximum response time6 ms

Paralleling of inputsYes

Typical current consumption256 mA at 3.3 V DC

100 mA at 24 V

MTBF reliability275940 H

Protection typeReverse polarity protection

External overload protection0.5 A fast blow

Voltage detection threshold< 14 V DC sensor fault

> 18 V DC sensor OK

Status LED1 LED (green) module operating (RUN)

1 LED per channel (green) channel diagnostic

1 LED (red) module error (ERR)

1 LED (red) module I/O

Net weight0.115 kg

Environment

IP degree of protectionIP20

Environmental characteristicGas resistant class Gx

Gas resistant class 3C4

Dust resistant class 3S4

Sand resistant class 3S4

Salt resistant level 2

Mold growth resistant class 3B2

Fungal spore resistant class 3B2

Dielectric strength1500 V AC at 50/60 Hz 1 minute, primary/secondary

Vibration resistance3 gn

Shock resistance15 gn

Ambient air temperature for storage-40…85 °C

ambient air temperature for operation-25…60 °C

Relative humidity5…95 % at 55 °C without condensation

Protective treatmentConformal coating

Operating altitude0...2000 m

2000...5000 m with derating factor

Packing Units

Unit Type of Package 1PCE

Number of Units in Package 11

Package 1 Height5.500 cm

Package 1 Width18.000 cm

Package 1 Length26.000 cm

Package 1 Weight334.000 g

Unit Type of Package 2S03

Number of Units in Package 28

Package 2 Height30.000 cm

Package 2 Width30.000 cm

Package 2 Length40.000 cm

Package 2 Weight3.154 kg
