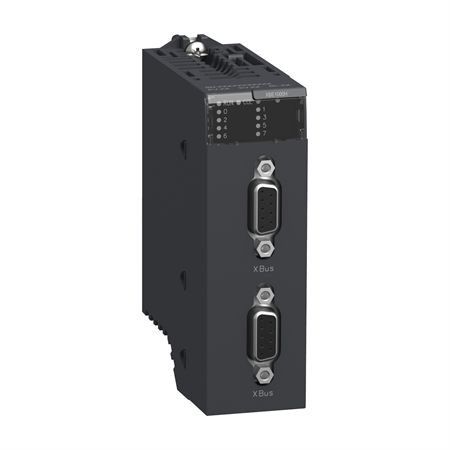

Schneider Electric BMXXBE1000 backplane expander, Modicon M340, for multiracks configuration
Main
Range of product Modicon M340 automation platform
Accessory / separate part category Extension accessory
Accessory / separate part type Backplane
Accessory / separate part designation Backplane expander
Product compatibility BMXXBP0600
BMXXBP0400
BMXXBP0800
BMXXBP1200
Accessory / separate part destination For multiracks configuration
Complementary
Electrical connection 2 female connectors SUB-D 9
Local signalling 1 LED green for operating status (RUN) bus
1 LED red for collision error (COL) rack
4 LEDs green for rack adresses status
Current consumption 160 mA at 24 V DC
22 mA at 3.3 V DC
Module format Standard
Environment
IP degree of protection IP20
ambient air temperature for operation 0…60 °C
Relative humidity 10…95 % without condensation
Directives 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
Product certifications CE
UL
CSA
RCM
EAC
Merchant Navy
Standards EN 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
Environmental characteristic Hazardous location class I division 2
Protective treatment TC
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 175.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.950 kg
