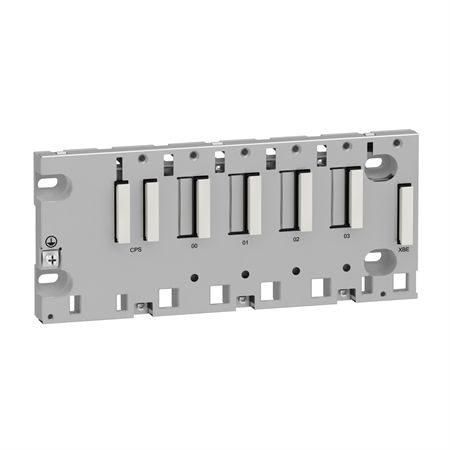

Schneider Electric BMXXBP0400 rack, Modicon M340 automation platform, 4 slots, panel, plate or DIN rail mounting
Main
Range of product Modicon M340 automation platform
Accessory / separate part type Rack
Complementary
Number of slots 4 bus X
Product compatibility BMXP34 processor
BMXCPS power supply
I/O module
Specific application module
power consumption in W 1 W
Electrical connection 1 connector (XBE) expansion module
Fixing mode By 4 screws - diameter: 4.32…6.35 mm, mounting on panel
By 4 M6 screws, mounting on plate
By clips, mounting on 35 mm symmetrical DIN rail
Net weight 0.63 kg
Environment
IP degree of protection IP20
ambient air temperature for operation 0…60 °C
Relative humidity 10…95 % without condensation
Protective treatment TC
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 15.2 cm
Package 1 Length 32.5 cm
Package 1 Weight 682.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 13
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 9.651 kg
Unit Type of Package 3 P06
Number of Units in Package 3 78
Package 3 Height 105.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 66.6 kg
Similar model numbers:
BMXXBP0400
BMXXBP0600
BMXXBP0800
BMXXBP1200
BMXXBE1000H
BMXXBP0400H
BMXXBP0600H
BMXXBP0800H
BMXXBP1200H
BMXXBE1000
BMXXBE2005
BMXXBE1000H
BMXXBC008K
BMXXBC015K
BMXXBC030K
BMXXBC050K
BMXXBC120K
BMXXEM010
BMXXSP0400
BMXXSP0600
BMXXSP0800
BMXXSP1200
STBXSP3010
STBXSP3020
TSXTLYEX
BMXXBC008K
