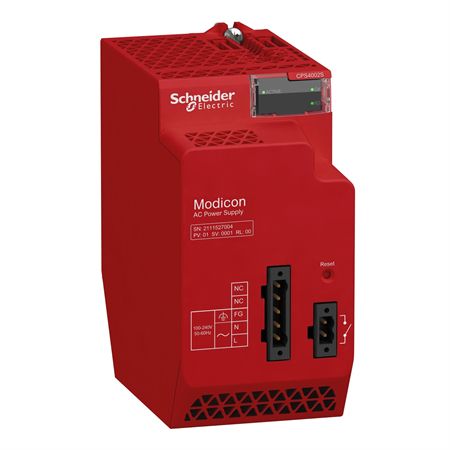

Schneider Electric BMXCPS4002S redundant power supply module X80 - 100..240 V AC - Safety
Main
Range of product Modicon X80
Product or component type Power supply module
backplane compatibility All backplane
advanced diagnostics available via network Redundancy information
Redundancy test
Temperature sensing
Remaining lifetime
Uptime duration
Primary voltage 100...240 V
Supply circuit type AC
Secondary power 15 W 3.3 V DC at -25…60 °C I/O module logic power supply
40 W 24 V DC at -25…60 °C I/O module power supply and processor if 3.3 V not loaded
Complementary
Primary voltage limit 85...264 V
Network frequency 50/60 Hz
Network frequency limits 47…63 Hz
Apparent power 0.13 kVA
Input current 0.55 A 230 V
1.1 A 115 V
Inrush current 30 A 115 V
60 A 230 V
I²t on activation 1 A².s 115 V
4 A².s 230 V
It on activation 0.1 A.s 115 V
0.15 A.s 230 V
MTBF reliability 770880 H
Protection type Internal fuse not accessible for primary circuit
Overload protection for secondary circuit
Overvoltage protection for secondary circuit
Short-circuit protection for secondary circuit
Current at secondary voltage 4.5 A 3.3 V DC I/O module logic power supply
1.67 A 24 V DC I/O module power supply and processor
Maximum power dissipation in W 8.5 W
Status LED 1 LED (green) presence of voltages (OK)
1 LED (green) redundancy OK
1 LED (green) power supply status
Control type RESET push-button cold restart
Electrical connection 1 connector 2 pin(s)alarm relay
1 connector 5 pin(s)line supply, protective earth
Insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
Net weight 0.51 kg
Environment
Immunity to microbreaks 10 ms
Dielectric strength 1500 V primary/secondary I/O module logic power supply
1500 V primary/secondary I/O module power supply and processor
2300 V primary/secondary sensor power supply
1500 V primary/ground
500 V 24 V sensor output/ground
Vibration resistance 3 gn
Shock resistance 15 gn
IP degree of protection IP20
Directives 2014/30/EU - electromagnetic compatibility
2006/42/EC - machinery
2014/34/EU - ATEX directive
Product certifications CE
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22
TÜV
Standards EN/IEC 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
EN/IEC 60079-0
Environmental characteristic Hazardous location class I division 2
Gas resistant class Gx conforming to ISA S71.04
Gas resistant class 3C4 conforming to IEC 60721-3-3
Dust resistant class 3S4 conforming to IEC 60721-3-3
Sand resistant class 3S4 conforming to IEC 60721-3-3
Salt resistant level 2 conforming to IEC 68252
Mold growth resistant class 3B2 conforming to IEC 60721-3-3
Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Ambient air temperature for storage -40…85 °C
ambient air temperature for operation -25…60 °C
Relative humidity 5…95 % at 55 °C without condensation
Protective treatment Conformal coating
Operating altitude 0...2000 m
2000...5000 m with derating factor
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 18 cm
Package 1 Width 25 cm
Package 1 Length 9 cm
Package 1 Weight 640 g
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.4 kg
Unit Type of Package 3 P06
Number of Units in Package 3 48
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 70 cm
Package 3 Weight 43.2 kg
