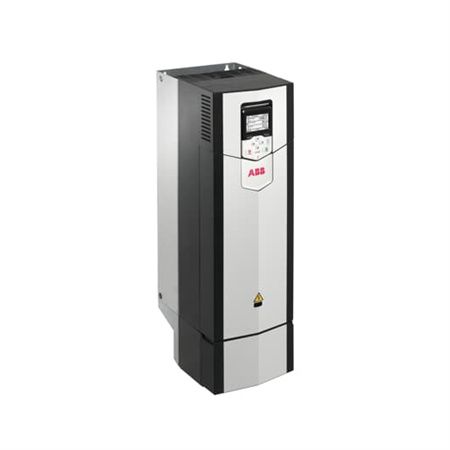

ABB ACS880-01-274A-2 3AUA0000137255 Wall-mounted Single Drive
Country of Origin:Finland (FI)
Customs Tariff Number:85044086
Invoice Description:ACS880-01-274A-2 PN: 75 kW, IN: 274 A
Made To Order:Yes
Minimum Order Quantity:1 piece
Order Multiple:1 piece
Quote Only:No
Selling Unit of Measure:piece
Container Information
Gross Volume:111.747 dm³
Dimensions
Product Net Weight:68.0 kg
149.914 lb
Product Net Depth / Length:386 mm
15.197 in
Product Net Height:965 mm
Product Net Width:300 mm
11.811 in
Package Level 1 Depth / Length:1085 mm
Package Level 1 Height:550 mm
Package Level 1 Width:400 mm
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:acc. to IEC 60529 IP21
Enclosure Type NEMA:Type1
Altitude:4000 m
Sound dB (A):68 dB(A)
Frequency (f):48 ... 63 Hz
Input Voltage (Uin):208 ... 240 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
LON
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of Hardware Interfaces:Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:With control unit
Without optical interface
With PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 2
Output Current, Heavy-Duty Use (IHD):213 A
Output Current, Light-Overload Use (ILD):260 A
Output Current, Normal Use (In):274 A
Output Power, Heavy-Duty Use (PHD):55 kW
Output Power, Light-Overload Use (PLD):75 kW
Output Power, Normal Use (Pn):75 kW
Apparent Power Output:109 kV·A
Efficiency Level:IE2
Standby Loss:62 W
Complete Drive Module Efficiency (61800-9-2):
Operating Point Frequency / Current Absolute Loss Relative Loss Efficiency
0 / 25 % 748 W 0.7 % 88.8 %
0 / 50 % 1104 W 1.0 % 91.2 %
0 / 100 % 2077 W 1.9 % 91.6 %
50 / 25 % 808 W 0.7 % 93.9 %
50 / 50 % 1217 W 1.1 % 95.1 %
50 / 100 % 2480 W 2.3 % 95.0 %
90 / 50 % 1504 W 1.4 % 96.6 %
90 / 100 % 3448 W 3.2 % 96.1 %
Temperature Rating:Maximum 40 °C
Additional Information
Product Main Type:ACS880-01
Product Name:Frequency converter
Classifications
Product Series:ACS880
ETIM 7:EC001857 - Frequency converter =< 1 kV
UNSPSC:39122001
Environmental
SCIP:2013a451-b618-4415-8b95-3817a736826b Finland (FI)
WEEE Category:4. Large Equipment (Any External Dimension More Than 50 cm)
