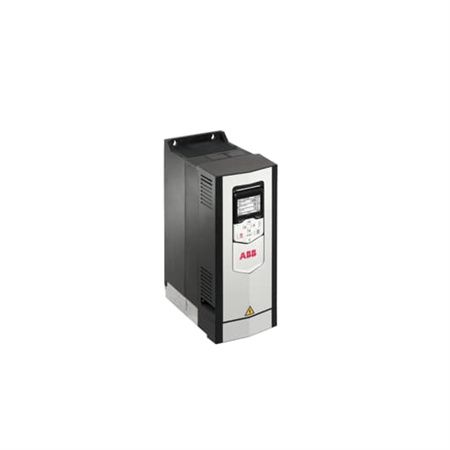

ABB ACS880-01-03A3-3 3AUA0000107975 Wall-mounted Single Drive
Country of Origin:Finland (FI)
Saudi Arabia (SA)
Customs Tariff Number:85044085
Invoice Description:ACS880-01-03A3-3 PN: 1.1 kW, IN: 3.3 A
Made To Order:Yes
Minimum Order Quantity:1 piece
Order Multiple:1 piece
Quote Only:No
Selling Unit of Measure:piece
Container Information
Gross Volume:14.327 dm³
Dimensions
Product Net Weight:7 kg
Product Net Depth / Length:226 mm
Product Net Height:409 mm
Product Net Width:155 mm
Package Level 1 Depth / Length:574 mm
Package Level 1 Height:281 mm
Package Level 1 Width:256 mm
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:4000 m
Sound dB (A):50 dB(A)
Frequency (f):48 ... 63 Hz
Input Voltage (Uin):380 ... 415 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
LON
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of Hardware Interfaces:Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:With control unit
Without optical interface
With PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 2
Output Current, Heavy-Duty Use (IHD):2.4 A
Output Current, Light-Overload Use (ILD):3.1 A
Output Current, Normal Use (In):3.3 A
Output Power, Heavy-Duty Use (PHD):0.75 kW
Output Power, Light-Overload Use (PLD):1.1 kW
Output Power, Normal Use (Pn):1.1 kW
Apparent Power Output:2.3 kV·A
Efficiency Level:IE2
Standby Loss:23 W
Complete Drive Module Efficiency (61800-9-2):
Operating Point Frequency / Current Absolute Loss Relative Loss Efficiency
0 / 25 % 34 W 1.5 % 78.1 %
0 / 50 % 37 W 1.6 % 86.5 %
0 / 100 % 43 W 1.9 % 91.0 %
50 / 25 % 35 W 1.5 % 87.9 %
50 / 50 % 38 W 1.7 % 92.7 %
50 / 100 % 46 W 2.0 % 95.2 %
90 / 50 % 40 W 1.8 % 95.6 %
90 / 100 % 52 W 2.3 % 96.9 %
Temperature Rating:Maximum 40 °C
Additional Information
Product Main Type:ACS880-01
Product Name:Frequency converter
Classifications
Product Series:ACS880
ETIM 7:EC001857 - Frequency converter =< 1 kV
UNSPSC:39122001
Environmental
SCIP:41b0aacf-6aee-4855-80d0-b0b23674f3cc Finland (FI)
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
