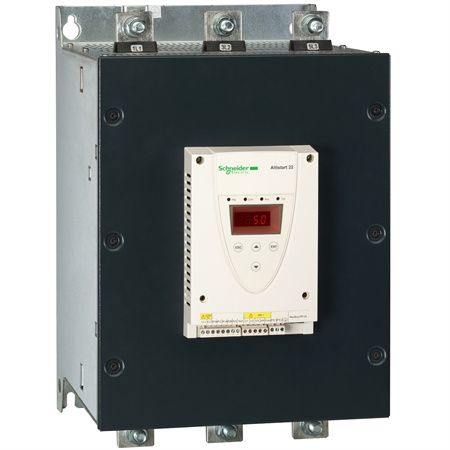

Schneider Electric ATS22C48S6 soft starter-ATS22-control 220V-power 230V(132kW)/400...440V(250kW)/500V(315kW)
Main
Range of productAltistart 22
Product or component typeSoft starter
Product destinationAsynchronous motors
Product specific applicationPumps and fans
Component nameATS22
Network number of phases3 phases
[Us] rated supply voltage230...600 V - 15...10 %
motor power kW132 kW 230 V
250 kW 400 V
250 kW 440 V
315 kW 500 V
Factory setting current414 A
power dissipation in W218 W for standard applications
Utilisation categoryAC-53A
Type of startStart with torque control (current limited to 3.5 In)
IcL starter rating480 A for connection in the motor supply line for standard applications
IP degree of protectionIP00
Complementary
Assembly styleWith heat sink
Function availableInternal bypass
Supply voltage limits195…660 V
supply frequency50...60 Hz - 10...10 %
Network frequency45...66 Hz
Device connectionIn the motor supply line
[Uc] control circuit voltage230 V - 15...10 % 50/60 Hz
Control circuit consumption20 W
Discrete output number2
discrete output typeRelay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
minimum switching current100 mA at 12 V DC (relay outputs)
maximum switching current5 A 250 V AC resistive 1 relay outputs
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs
Discrete input number3
discrete input type(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
discrete input voltage24 V <= 30 V
discrete input logicPositive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
output current0.4...1 Icl adjustable
PTC probe input750 Ohm
Communication port protocolModbus
connector type1 RJ45
Communication data linkSerial
Physical interfaceRS485 multidrop
Transmission rate4800, 9600 or 19200 bps
Installed device31
protection typePhase failure: line
Thermal protection: motor
Thermal protection: starter
MarkingCE
Type of coolingForced convection
Operating positionVertical +/- 10 degree
Height455 mm
Width304 mm
Depth339.7 mm
Net weight50 kg
Motor power range AC-3110…220 kW at 200…240 V 3 phases
250…500 kW at 480…500 V 3 phases
250…500 kW at 380…440 V 3 phases
Motor starter typeSoft starter
Environment
electromagnetic compatibilityConducted and radiated emissions level A conforming to IEC 60947-4-2
Damped oscillating waves level 3 conforming to IEC 61000-4-12
Electrostatic discharge level 3 conforming to IEC 61000-4-2
Immunity to electrical transients level 4 conforming to IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
Voltage/current impulse level 3 conforming to IEC 61000-4-5
StandardsEN/IEC 60947-4-2
Product certificationsC-Tick
GOST
CSA
UL
CCC
vibration resistance1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm (f= 2…13 Hz) conforming to EN/IEC 60068-2-6
shock resistance15 gn for 11 ms conforming to EN/IEC 60068-2-27
Noise level56 dB
pollution degreeLevel 2 conforming to IEC 60664-1
relative humidity0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
ambient air temperature for operation-10…40 °C (without derating)
40…60 °C (with current derating 2.2 % per °C)
Ambient air temperature for storage-25…70 °C
operating altitude<= 1000 m without derating
> 1000...< 2000 m with current derating of 2.2 % per additional 100 m
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height53.000 cm
Package 1 Width40.000 cm
Package 1 Length60.000 cm
Package 1 Weight40.000 kg
