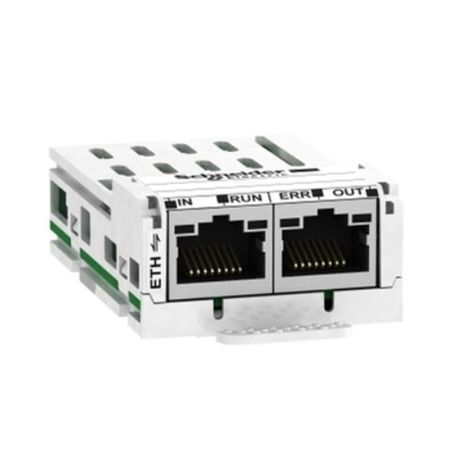

Schneider Electric VW3A3601 Ethercat 2 x RJ45 communication module

Schneider Electric VW3A3601 Ethercat 2 x RJ45 communication module

Model: VW3A3601

Supplier: Schneider Electric

Categories: Motion Control and Robotics

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Schneider Electric VW3A3601 Ethercat 2 x RJ45 communication module

Communication Module


Main

range of productAltivar

product or component typeCommunication module

Complementary

range compatibilityAltivar Process Modular

Altivar Machine ATV340 except Sercos drives

Altivar Machine ATV320

Altivar Process ATV900

Altivar 32

Lexium 32

product compatibilityLexium 32

communication port protocolEtherCAT

electrical connection2 connectors RJ45

transmission rate100 Mbps

maximum cable distance between devices100 m for 100 Mbps

addressingLogical addressing

Node addressing

Position addressing

communication servicePDO and SDO support

Drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402)

CANopen over EtherCAT (CoE)

display type1 LED for input status

1 LED for RUN

1 LED for error

1 LED for output status

Environment

StandardsIEC 61800-7-201 (CiA 402)

Packing Units

Unit Type of Package 1PCE

Number of Units in Package 11

Package 1 Height6.3 cm

Package 1 Width4.5 cm

Package 1 Length9.0 cm

Package 1 Weight60.0 g

Unit Type of Package 2S03

Number of Units in Package 2100

Package 2 Height30.0 cm

Package 2 Width30.0 cm

Package 2 Length40.0 cm

Package 2 Weight6.58 kg
