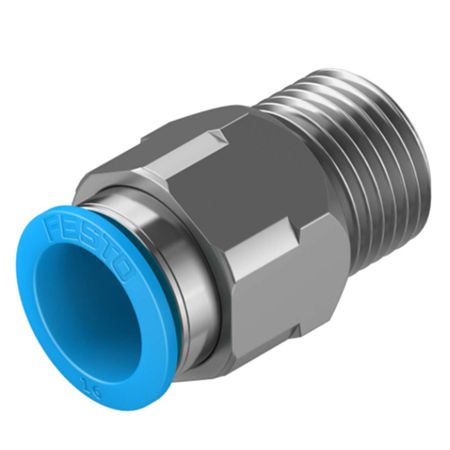

Festo QS-1/2-16 Push-in fitting 153011

• SizeStandard

• Nominal width13 mm

• Type of seal on screwed trunnionCoating

• Mounting positionAny

• Pack size1

• Structural designPush-pull principle

• Operating pressure for entire temperature range-0.95 bar ... 6 bar

• Temperature-dependent operating pressure-0.95 bar ... 14 bar

• Maritime classificationSee certificate

• Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com

• Information on operating and pilot mediaOperation with oil lubrication possible

• Corrosion resistance class (CRC)1 - Low corrosion stress

• Ambient temperature-10 °C ... 80 °C

• Product weight63 g

• Pneumatic connection 1External thread R1/2

• Pneumatic connection 2for pneumatic tubing outside diameter 16 mm

• Releasing ring colorBlue

• Note on materialsRoHS-compliant

• Housing materialBrass Nickel-plated

• Releasing ring materialPOM

• Material of tubing sealNBR

• Material of tube retaining clawHigh-alloy stainless steel

Similar model numbers:

QS-1/2-16-20

QS-1/2-16
