Festo QSL-G1/4-8-50 Push-in L-fitting 132052

Festo QSL-G1/4-8-50 Push-in L-fitting 132052

Model: QSL-G1/4-8-50

Supplier: Festo

Categories: Connectors, Fittings & Tubings

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

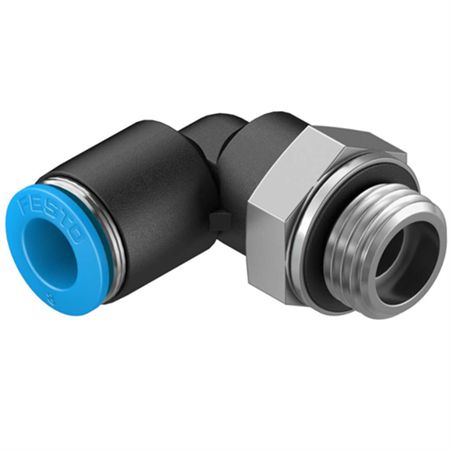

Festo QSL-G1/4-8-50 Push-in L-fitting 132052

Push-in L-fitting

SizeStandard

Nominal width6.7 mm

Type of seal on screwed trunnionSealing ring

Mounting positionAny

Pack size50

Structural designPush-pull principle

Operating pressure for entire temperature range-0.95 bar ... 6 bar

Temperature-dependent operating pressure-0.95 bar ... 14 bar

Maritime classificationSee certificate

Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com

Information on operating and pilot mediaOperation with oil lubrication possible

Corrosion resistance class (CRC)1 - Low corrosion stress

Ambient temperature-10 °C ... 80 °C

Nominal tightening torque9 Nm

Tolerance for nominal tightening torque± 20%

Product weight23 g

Pneumatic connection 1External thread G1/4

Pneumatic connection 2for pneumatic tubing outside diameter 8 mm

Releasing ring colorBlue

Note on materialsRoHS-compliant

Housing materialPBT

Releasing ring materialPOM

Material of tubing sealNBR

Material of tube retaining clawHigh-alloy stainless steel


Similar model numbers:

QSL-G1/4-8

QSL-G1/4-8-50
