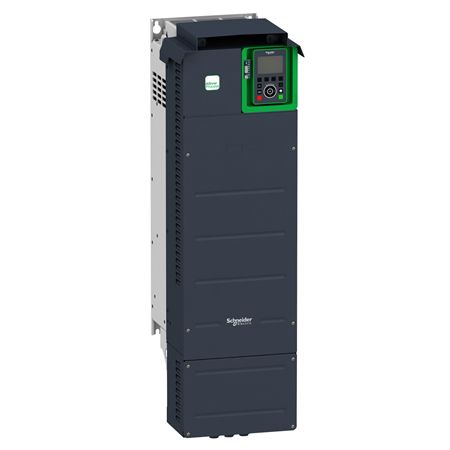

Schneider Electric ATV930D30M3C Variable speed drive, Altivar Process ATV900, ATV930, 30 kW

Schneider Electric ATV930D30M3C Variable speed drive, Altivar Process ATV900, ATV930, 30 kW

Model: ATV930D30M3C

Supplier: Schneider Electric

Categories: Variable Speed Drives and Soft Starters

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Schneider Electric ATV930D30M3C Variable speed drive, Altivar Process ATV900, ATV930, 30 kW

Variable speed drive2.JPG


Main

range of productAltivar Process ATV900

device applicationIndustrial application

product or component typeVariable speed drive

product destinationSynchronous motors

Asynchronous motors

product specific applicationProcess for industrial

variantStandard version

Without braking chopper

network number of phases3 phases

mounting modeWall mount

communication port protocolModbus serial

Modbus TCP

EtherNet/IP

[Us] rated supply voltage200...240 V - 15...10 %

motor power kW30.0 kW for normal duty

22.0 kW for heavy duty

motor power hp40.0 hp for normal duty

30.0 hp for heavy duty

continuous output current123 A at 2.5 kHz for normal duty

92.6 A at 2.5 kHz for heavy duty

EMC filterIntegrated

With EMC plate option

IP degree of protectionIP21

degree of protectionUL type 1

option moduleSlot A: communication module for Profibus DP V1

Slot A: communication module for PROFINET

Slot A: communication module for DeviceNet

Slot A: communication module for EtherCAT

Slot A: communication module for CANopen daisy chain RJ45

Slot A: communication module for CANopen SUB-D 9

Slot A: communication module for CANopen screw terminals

Slot A/slot B/slot C: digital and analog I/O extension module

Slot A/slot B/slot C: output relay extension module

Slot B: 5/12 V digital encoder interface module

Slot B: analog encoder interface module

Slot B: resolver encoder interface module

communication module for Ethernet Powerlink

discrete input logic16 preset speeds

asynchronous motor control profileConstant torque standard

Optimized torque mode

Variable torque standard

synchronous motor control profilePermanent magnet motor

Synchronous reluctance motor

maximum output frequency599 Hz

switching frequency1...8 kHz adjustable

2.5...8 kHz with derating factor

nominal switching frequency2.5 kHz

line current104.7 A at 200 V (normal duty)

78.3 A at 200 V (heavy duty)

88.6 A at 240 V (normal duty)

67.1 A at 240 V (heavy duty)

apparent power36.8 kVA at 240 V (normal duty)

27.9 kVA at 240 V (heavy duty)

maximum transient current147.6 A during 60 s (normal duty)

138.9 A during 60 s (heavy duty)

network frequency50...60 Hz

prospective line Isc50 kA


Similar model numbers:

ATV930U07M3

ATV930U15M3

ATV930U22M3

ATV930U30M3

ATV930U40M3

ATV930U55M3

ATV930U75M3

ATV930D11M3

ATV930D15M3

ATV930D18M3

ATV930D22M3

ATV930D30M3

ATV930D37M3

ATV930D45M3

ATV930D30M3C

ATV930D37M3C

ATV930D45M3C

ATV930D55M3C

ATV930D75M3C
