Schneider Electric ATV930U40M3 Variable speed drive, Altivar Process ATV900, ATV930, 4 kW

Schneider Electric ATV930U40M3 Variable speed drive, Altivar Process ATV900, ATV930, 4 kW

Model: ATV930U40M3

Supplier: Schneider Electric

Categories: Variable Speed Drives and Soft Starters

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Schneider Electric ATV930U40M3 Variable speed drive, Altivar Process ATV900, ATV930, 4 kW

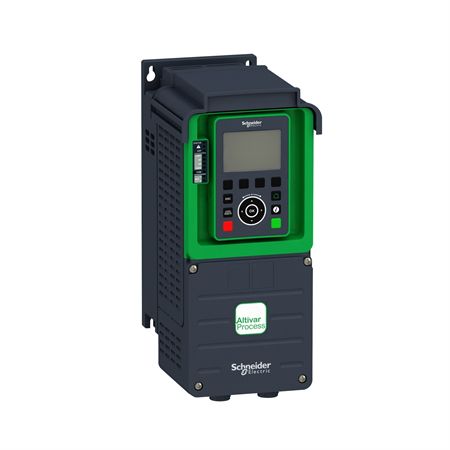

Variable speed drive.JPG


Main

range of productAltivar Process ATV900

device applicationIndustrial application

product or component typeVariable speed drive

product destinationAsynchronous motors

Synchronous motors

product specific applicationProcess for industrial

variantStandard version

With braking chopper

network number of phases3 phases

mounting modeWall mount

communication port protocolModbus serial

Modbus TCP

EtherNet/IP

[Us] rated supply voltage200...240 V - 15...10 %

motor power kW4.0 kW for normal duty

3.0 kW for heavy duty

motor power hp5.0 hp for normal duty

continuous output current18.7 A at 4 kHz for normal duty

13.7 A at 4 kHz for heavy duty

EMC filterIntegrated

With EMC plate option

IP degree of protectionIP21

degree of protectionUL type 1

option moduleSlot A: communication module for Profibus DP V1

Slot A: communication module for PROFINET

Slot A: communication module for DeviceNet

Slot A: communication module for EtherCAT

Slot A: communication module for CANopen daisy chain RJ45

Slot A: communication module for CANopen SUB-D 9

Slot A: communication module for CANopen screw terminals

Slot A/slot B/slot C: digital and analog I/O extension module

Slot A/slot B/slot C: output relay extension module

Slot B: 5/12 V digital encoder interface module

Slot B: analog encoder interface module

Slot B: resolver encoder interface module

communication module for Ethernet Powerlink

discrete input logic16 preset speeds

asynchronous motor control profileOptimized torque mode

Constant torque standard

Variable torque standard

synchronous motor control profilePermanent magnet motor

Synchronous reluctance motor

maximum output frequency599 Hz

switching frequency2...16 kHz adjustable

4...16 kHz with derating factor

nominal switching frequency4 kHz

line current15.1 A at 200 V (normal duty)

11.7 A at 200 V (heavy duty)

12.9 A at 240 V (normal duty)

10.2 A at 240 V (heavy duty)

apparent power5.4 kVA at 240 V (normal duty)

4.2 kVA at 240 V (heavy duty)

maximum transient current22.4 A during 60 s (normal duty)

20.6 A during 60 s (heavy duty)

network frequency50...60 Hz

prospective line Isc50 kA
