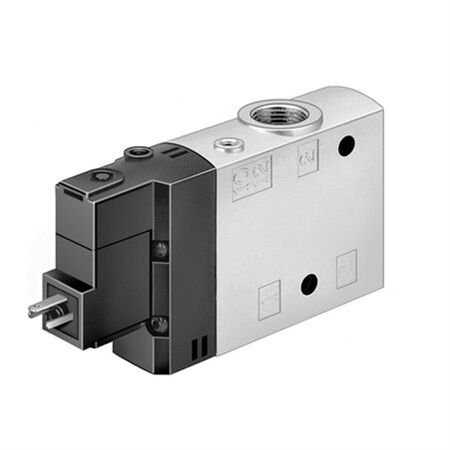

Festo CPE24-M1H-3OL-3/8 163164 Air Solenoid Valve
• Valve function3/2, open, monostable
• Actuation typeElectrical
• Width24 mm
• Standard nominal flow rate3000 l/min
• Pneumatic working portG3/8
• Operating voltage24V DC
• Operating pressure0.25 MPa ... 1 MPa
• Operating pressure2.5 bar ... 10 bar
• Structural designPiston gate valve
• Reset methodPneumatic spring
• Certificationc UL us - Recognized (OL)
• Maritime classificationSee certificate
• Degree of protectionIP65 With plug socket as per IEC 60529
• Nominal width11 mm
• Sealing principleSoft
• Mounting positionAny
• Manual overrideDetenting via accessory Non-detenting
• Type of controlPilot-controlled
• Pilot air supply portInternal
• Flow directionNon-reversible
• Symbol00991656
• Valve position IDLabel holder
• LapOverlap
• Switching time off33 ms
• On switching time50 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal3300 µs
• Max. negative test pulse on 1 signal3100 µs
• Coil characteristics24 V DC: 1.5 W
• Permissible voltage fluctuations-15 % / +10 %
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Temperature of medium-5 °C ... 50 °C
• Ambient temperature-5 °C ... 50 °C
• Product weight220 g
• Electrical connectionForm C
• Type of mountingWith through-hole
• Pilot exhaust air port 82M5
• Pilot air port 12M5
• Pneumatic connection 1G3/8
• Pneumatic connection 2G3/8
• Pneumatic connection 3G3/8
• Note on materialsRoHS-compliant
• Seals materialNBR
• Housing materialDie-cast aluminum
