Terminal Blocks

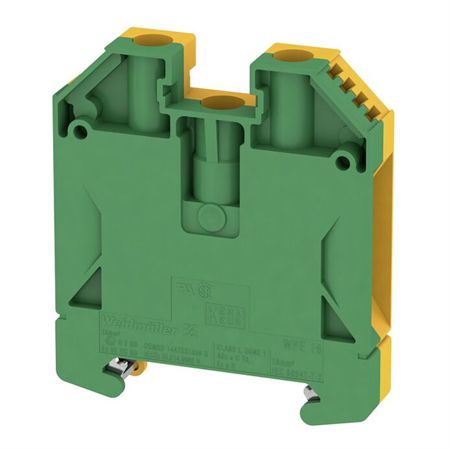

Weidmüller 1010400000 WPE 16 PE terminal, Screw connection, 16 mm², 1920 A (16 mm²), Green/yellow

Weidmüller 1010400000 WPE 16 PE terminal, Screw connection, 16 mm², 1920 A (16 mm²), Green/yellow

Model: 1010400000

Supplier: Weidmüller

Categories: Terminal Blocks

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Weidmüller 1010400000 WPE 16 PE terminal, Screw connection, 16 mm², 1920 A (16 mm²), Green/yellow

Terminal4

Version PE terminal, Screw connection, 16 mm², 1920 A (16 mm²), Green/yellow

Order No. 1010400000

Type WPE 16

GTIN (EAN) 4008190126674

Qty. 50 pc(s).

Depth 62.5 mm

Depth (inches) 2.461 inch

Depth including DIN rail 63 mm

Height 56 mm

Height (inches) 2.205 inch

Width 11.9 mm

Width (inches) 0.469 inch

Net weight 56.68 g

Storage temperature -25 °C...55 °C

Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity

Continuous operating temp., min. -60 °C

Continuous operating temp., max. 130 °C


Similar model numbers:

1016500000

1010300000

1042500000

1010400000

1010000000

1016400000

1010100000

1905120000

1905130000

1010200000
