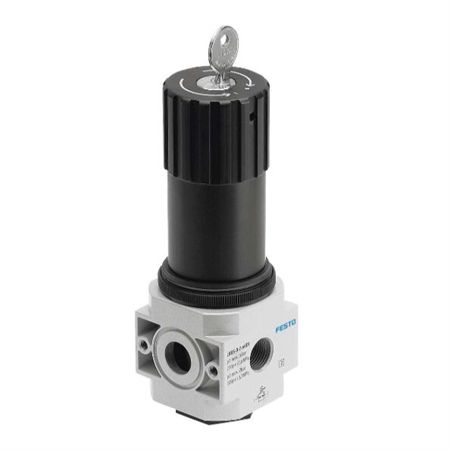

Festo LRBS-D-O-MINI 194682 Pressure Regulator

Festo LRBS-D-O-MINI 194682 Pressure Regulator

Model: LRBS-D-O-MINI

Supplier: Festo

Categories: Air Preparation

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Festo LRBS-D-O-MINI 194682 Pressure Regulator

Pressure Regulator4

SizeMini

SeriesD

Actuator lockRotary knob with integrated lock

Mounting positionAny

Structural designDirectly controlled diaphragm regulator with continuous compressed air supply

Controller functionOutlet pressure constant With primary pressure compensation With secondary exhausting

Symbol00991540

Pressure gaugeG1/8 prepared

Operating pressure1 bar ... 16 bar

Pressure regulation range0.5 bar ... 12 bar

Max. pressure hysteresis0.2 bar

Standard nominal flow rate1800 l/min

Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air quality class at the outputCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas

Temperature of medium-10 °C ... 60 °C

Ambient temperature-10 °C ... 60 °C

Product weight350 g

Type of mountingLine installation With accessories

Pneumatic connection 1Sub-base

Pneumatic connection 2G¼

Note on materialsRoHS-compliant

Material of sub-baseDie-cast zinc

Material of operator panelAluminum

Seals materialNBR

Housing materialDie-cast zinc


Similar model numbers:

LRB-D-7-O-MIDI

LRB-D-7-O-MINI

LRBS-D-O-MIDI

LRB-D-O-MIDI

LRBS-D-7-O-MIDI

LRBS-D-O-MINI

LRB-D-O-MINI

LRBS-D-7-O-MINI
