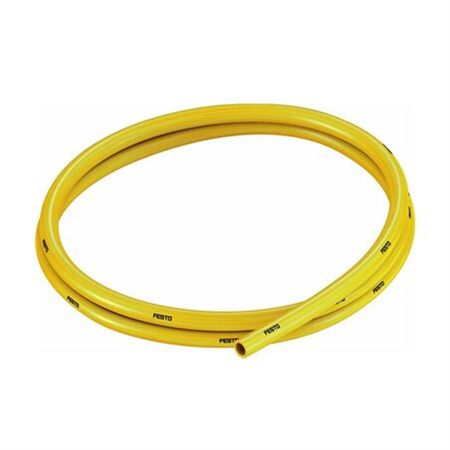

Festo PUN-8X1,25-GE 178419 Plastic Tubing

• Outside diameter8 mm

• Bending radius relevant for flow rate37 mm

• Inside diameter5.7 mm

• Min. bending radius24 mm

• Application noteTPE-U Ester based

• Tubing characteristicssuitability for energy chains

• Operating pressure for entire temperature range-0.095 MPa ... 0.7 MPa

• Operating pressure for entire temperature range-0.95 bar ... 7 bar

• Operating pressure for entire temperature range-13.775 psi ... 101.5 psi

• Temperature-dependent operating pressure-0.095 MPa ... 1 MPa

• Temperature-dependent operating pressure-0.95 bar ... 10 bar

• Temperature-dependent operating pressure-13.775 psi ... 145 psi

• CertificationGerman Technical Control Board (TÜV)

• Certificate issuing authorityB 013277 0506 00

• Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]

• Material fire testUL94 HB

• LABS (PWIS) conformityVDMA24364-B2-L

• Ambient temperature-35 °C ... 60 °C

• Product weight by length0.0302 kg/m

• Pneumatic connectionFor plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm

• ColorYellow

• Shore hardnessD 52 +/-3

• Note on materialsRoHS-compliant

• Material of pneumatic tubingTPE-U(PU)

Similar model numbers:

PUN-8X1,25-DUO-BS

PUN-8X1,25-DUO-SI

PUN-8X1,25-SW-400

PUN-8X1,25-SW

PUN-8X1,25-BL-400

PUN-8X1,25-BL

PUN-8X1,25-GN

PUN-8X1,25-RT

PUN-8X1,25-SI-400

PUN-8X1,25-SI

PUN-8X1,25-GE
