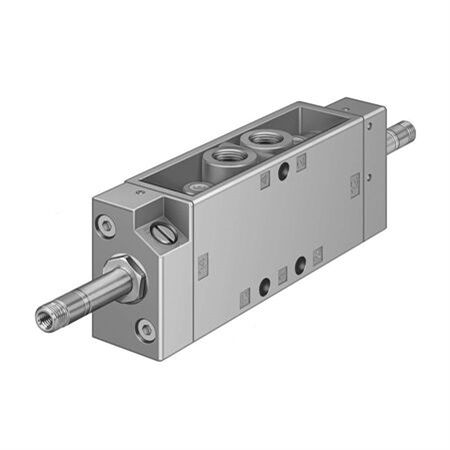

Festo JMFH-5-1/8-S-NPT 15613 Air Solenoid Valve
• Valve function5/2, bistable
• Actuation typeElectrical
• Width26 mm
• Standard nominal flow rate600 l/min
• Pneumatic working port1/8 NPT
• Operating voltageVia solenoid coil, to be ordered separately
• Operating pressure0 MPa ... 1 MPa
• Operating pressure0 bar ... 10 bar
• Structural designPlate seat
• Certificationc UL us - Recognized (OL)
• Degree of protectionIP65
• Nominal width5 mm
• Width dimension27 mm
• Exhaust air functionWith flow control option
• Sealing principleSoft
• Mounting positionAny
• Type of controlPilot-controlled
• Pilot air supply portExternal
• Flow directionNon-reversible
• Symbol00995755
• LapUnderlap
• Pilot pressure MPa0.12 MPa ... 0.8 MPa
• Pilot pressure1.2 bar ... 8 bar
• Max. switching frequency25 Hz
• Changeover time10 ms
• Max. positive test pulse with 0 signal2200 µs
• Max. negative test pulse on 1 signal3700 µs
• Coil characteristicsSee solenoid coil, to be ordered separately
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Storage temperature-20 °C ... 60 °C
• Temperature of medium-10 °C ... 60 °C
• Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 40 °C
• Product weight260 g
• Electrical connectionVia F coil, to be ordered separately
• Type of mountingOptionally: On terminal strip With through-hole
• Pilot exhaust air port 82M5
• Pilot exhaust air port 84M5
• Pilot air port 1210-32 UNF-2B
• Pilot air port 1410-32 UNF-2B
• Pneumatic connection 11/8 NPT
• Pneumatic connection 21/8 NPT
• Pneumatic connection 31/8 NPT
• Pneumatic connection 41/8 NPT
• Pneumatic connection 51/8 NPT
• Note on materialsRoHS-compliant
• Seals materialNBR TPE-U(PU)
• Housing materialDie-cast aluminum
