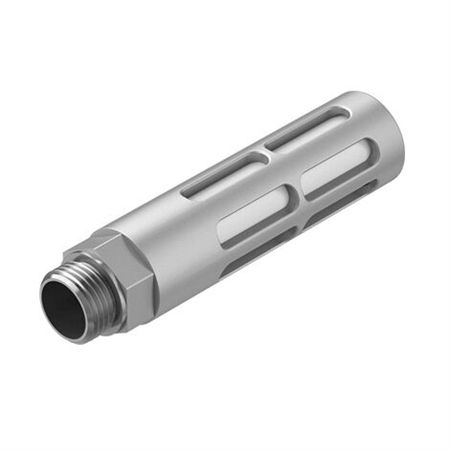

Festo U-1/2-B 6844 Pneumatic Muffler

• Mounting positionAny

• Symbol00991473

• Operating pressure for entire temperature range0 MPa ... 1 MPa

• Operating pressure for entire temperature range0 bar ... 10 bar

• Operating pressure for entire temperature range0 psi ... 145 psi

• Flow rate with respect to atmosphere7500 l/min

• Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]

• Information on operating and pilot mediaOperation with oil lubrication possible

• Corrosion resistance class (CRC)1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Noise level81 dB(A)

• Ambient temperature-10 °C ... 70 °C

• Product weight75 g

• Pneumatic connectionG1/2

• Cushioning insert materialPE

• Material of screwed plugAluminum

• Note on materialsRoHS-compliant

• Housing materialAluminum

Similar model numbers:

U-1/2-B-NPT

U-1/4-B-NPT

U-1/8-B-NPT

U-1

U-1/2

U-1/4

U-1/8

U-1-B

U-1/2-B

U-1/4-B

U-1/8-B

U-1-B-NPT

U-1/2-20

U-1/4-20

U-1/8-I

U-1/8-50
