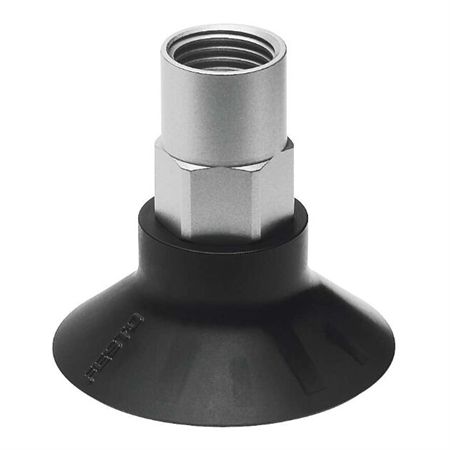

Festo ESS-40-GT-M10 525973 Vacuum Suction Cup

• Suction cup holder height compensator5.5 mm

• Min. workpiece radius35 mm

• Nominal width2.5 mm

• Suction cup diameter40 mm

• Suction cup volume5.4 cm³

• Mounting positionAny

• Symbol00991485

• Classification of suction cup holderSize 5

• Suction cup shapeRound, deep

• Operating pressure-0.95 bar ... 0 bar

• Nominal operating pressure-0.7 bar

• Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

• Corrosion resistance class (CRC)2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-A1-L

• Ambient temperature-10 °C ... 80 °C

• Holding force at nominal operating pressure64 N

• Lateral force at nominal operating pressure20 N

• Product weight15 g

• Type of mountingVia vacuum connection

• Vacuum connectionM10

• ColorReddish brown

• Shore hardness72 +/- 5

• Material of screwed plugWrought aluminum alloy

• Note on materialsRoHS-compliant

• Suction cup materialVulkollan
